MLP201210 - ESP32 - Wemos WS2811/WS2812 8-Channel Pixel Driver

An 8 Channel Pixel driver board for Wemos ESP32 Boards.
Coming Very Soon

MLP201209 - ESP32 - Node-MCU WS2811/WS2812 8-Channel Pixel Driver

An 8 Channel Pixel driver board for Node-MCU 30-Pin ESP32 Boards.
Coming Very Soon

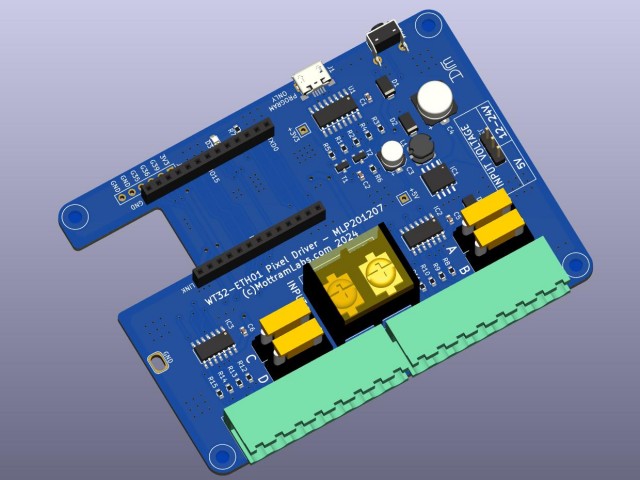

MLP201207 - WT32-ETH01 8-Channel - WS2811/WS2812 LED Driver Board

An 8 Channel Pixel driver board for WT32-ETH01 Boards.
Coming Very Soon

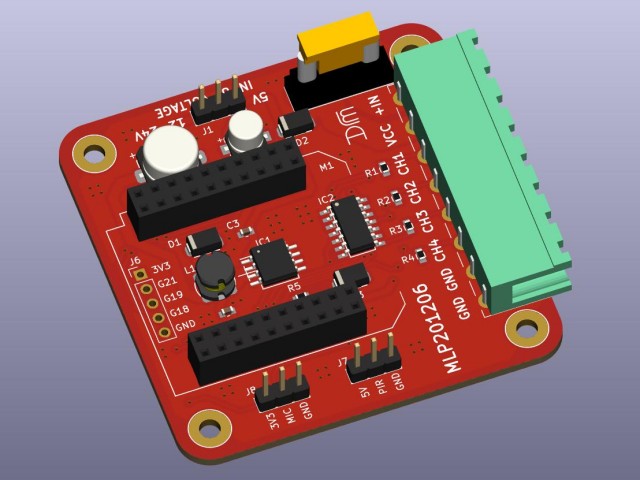

MLP201206 - ESP32 - Wemos 4-Channel Pixel Driver

A 4 Channel Pixel driver board for Wemos ESP32 Boards. With 5A Fuse.

MLP201204 - ESP32 - Node-MCU High Power 2-Channel Pixel Driver

A 2 Channel Pixel driver board for a 30 Pin Node-MCU ESP32 Board with Fuse.

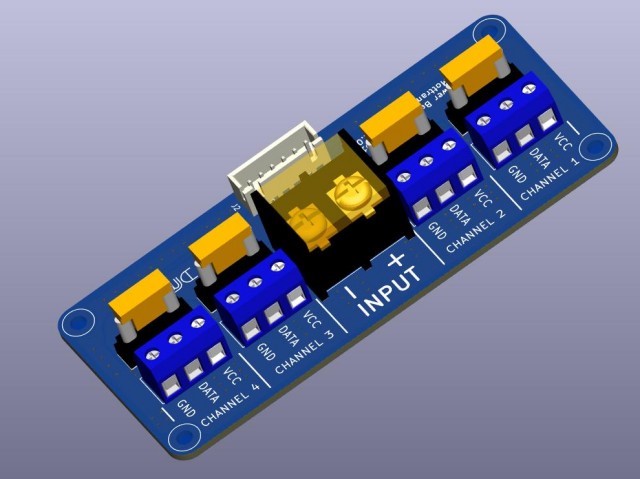

MLP201201 - Pixel Power Breakout Board - Slim Version

A power distribution board for 4 channels of addressable LED strips. Each channel has a fuse and power indicator.

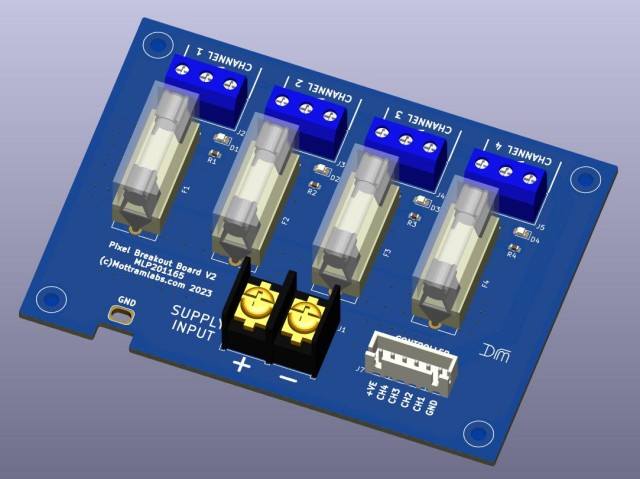

MLP201165 - Pixel Power Breakout Board

A power distribution board for 4 channels of addressable LED strips. Each channel has a fuse and power indicator

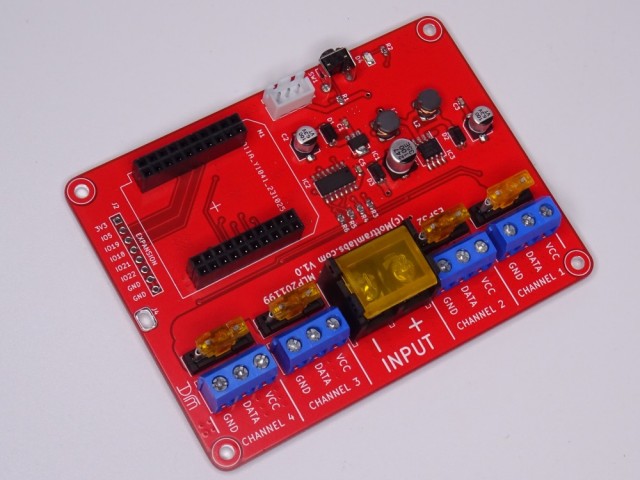

MLP201199 - ESP32 - Wemos High Power 4-Channel Pixel Driver

A 4 channel high power Pixel (WS2812) driver. 5A (10A peak) per channel

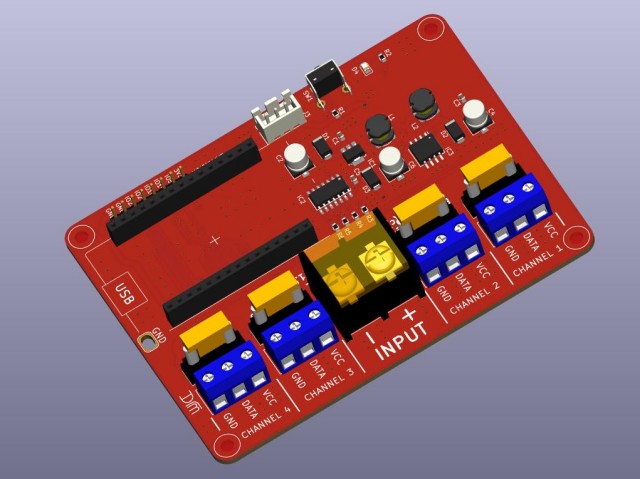

MLP201205 - ESP32 - Node-MCU High Power 4-Channel Pixel Drive

A 4 channel high power Pixel (WS2812) driver. 5A (10A peak) per channel. Designed for a 30 Pin Node-MCU ESP32.

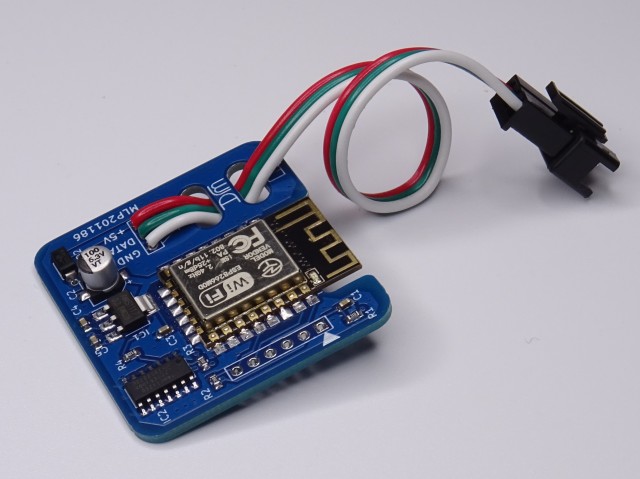

MLP201186 - ESP8266 - WS2812 LED Driver Board With WLED

A 1 Channel Pixel driver driver board with WLED pre-installed and 3-way male connector for LED strips.

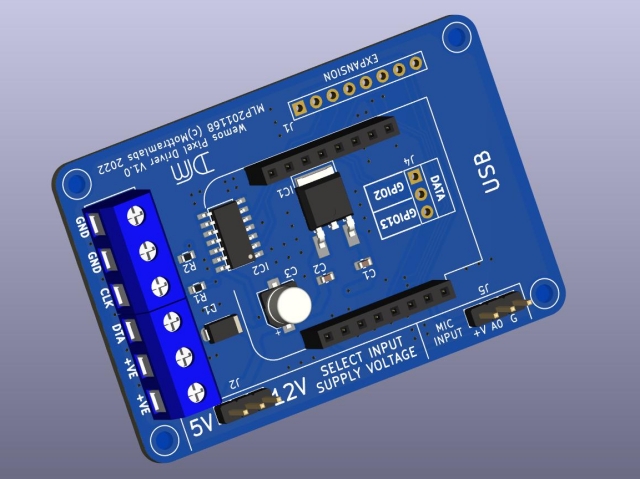

MLP201168 - Wemos D1 Mini - WS2812 LED Driver Board

A 2 Channel Pixel driver board for a ESP8266 Wemos D1 Mini Board.

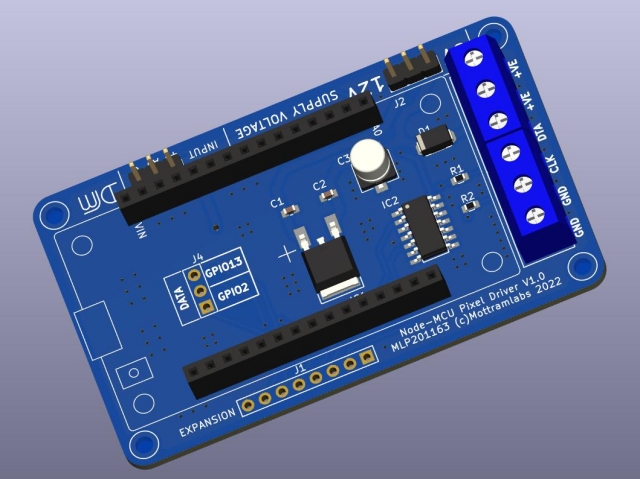

MLP201163 - Node-MCU - WS2812 LED Driver Board

A 2 Channel Pixel driver board for a ESP8266 Node-MCU Board.

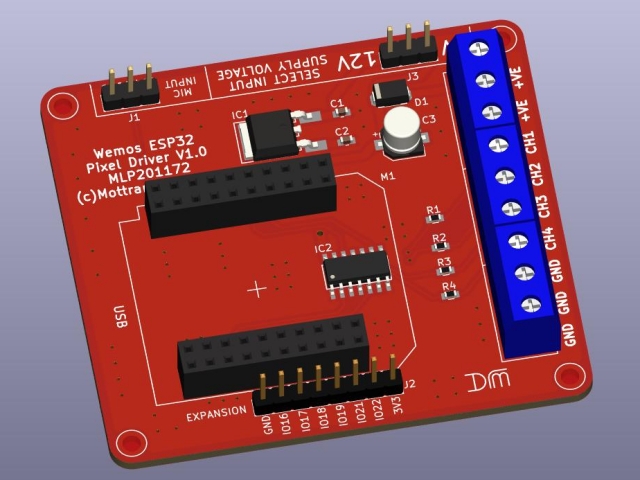

MLP201172 - Wemos ESP32 - WS2812 LED Driver Board

A 4 Channel Pixel driver board for a Wemos ESP32 Board.

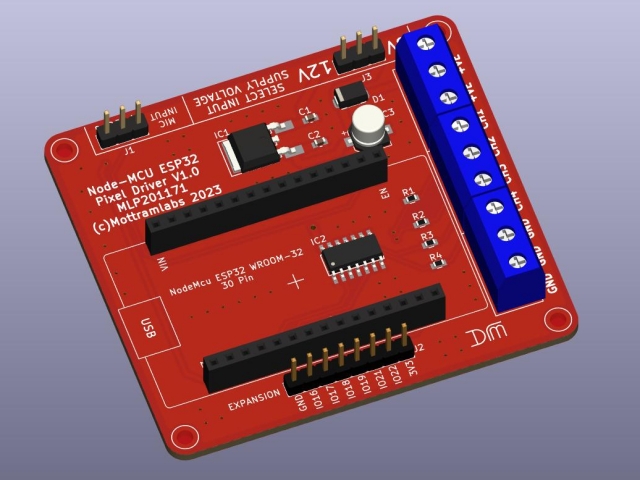

MLP201171 - Node-MCU ESP32 - WS2812 LED Driver Board

A 4 Channel Pixel driver board for a 30 Pin Node-MCU ESP32 Board.

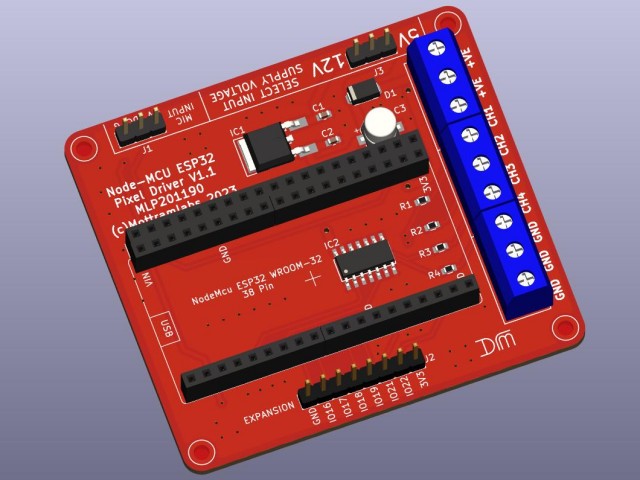

MLP201190 - Node-MCU ESP32 - WS2812 LED Driver Board

A 4 Channel Pixel driver board for a 38 Pin Node-MCU ESP32 Board.

MLP201177 - ESP8266 - WS2812 LED Driver Board With WLED

A 2 channel LED pixel driver with WLED pre-installed.

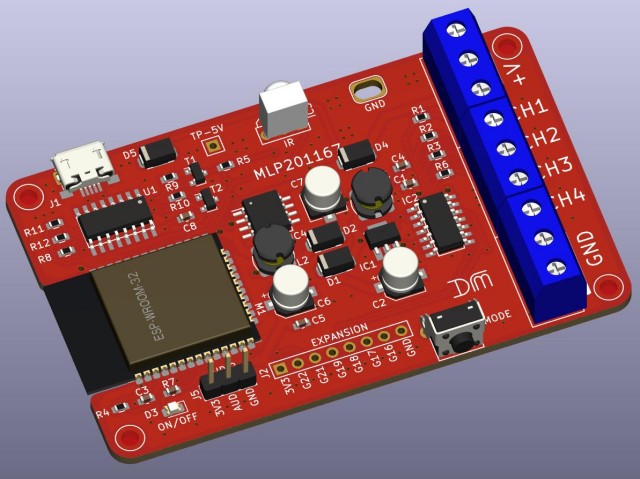

MLP201167 - ESP32 - WS2811/WS2812 LED Driver Board

A Pixel driver board with an ESP32 module and pre-installed WLED. Universal input voltage 5/12V no links to set. 5V line driver outputs for data, with 4 channels. IR receiver and Audio input connector.

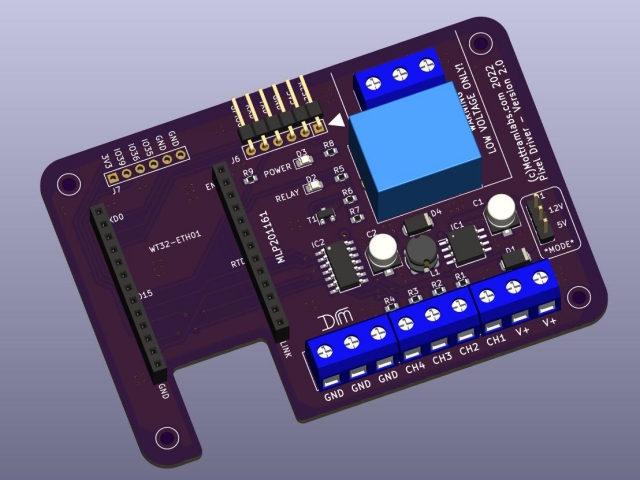

MLP201161 - WT32-ETH01 - WS2811/WS2812 LED Driver Board

A Pixel driver board with an WT32-ETH01 module. Four LED driver outputs plus a Relay. Ideal for use with WLED

Note: The WT32-ETH01 board does not have an onboard USB port. To program you will need an external USB to Serial adaptor.

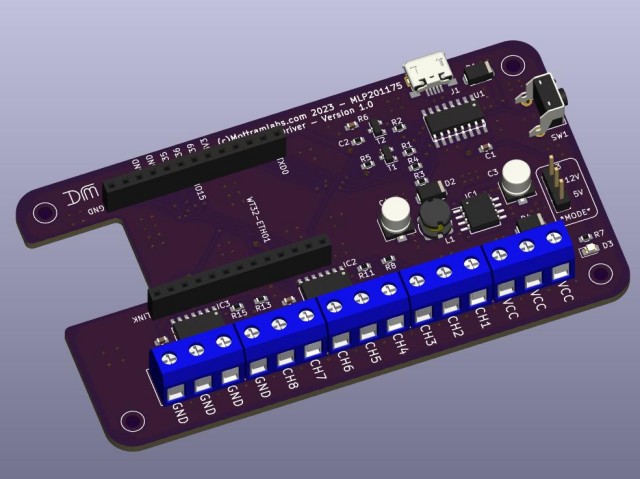

MLP201175 - WT32-ETH01 - WS2811/WS2812 LED Driver Board

Comming Soon
A Pixel driver board with an WT32-ETH01 module. Eight LED driver outputs plus a Relay. Ideal for use with WLED

Note: The WT32-ETH01 board does not have an onboard USB port. A on-board USB to Serial Interface is provided.

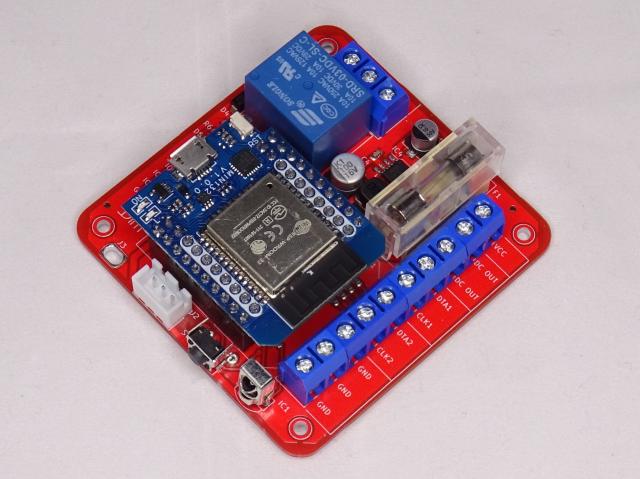

MLP201150 - ESP32 - WS2811/WS2812 LED Driver Board

A Pixel driver board for the Wemos ESP32 module. Universal input voltage 5/12V no links to set. Four outputs with 5V line drivers for Data and Clock. IR receiver and Audio input connector. Also a relay for control of external low volatge circuits

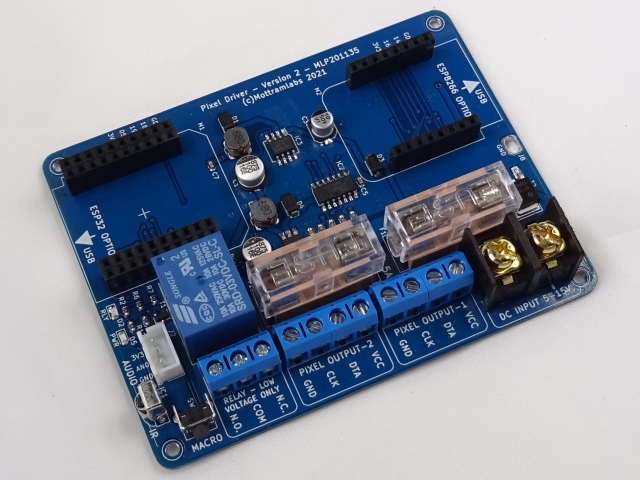

MLP201135 - Wemos ESP8266 or ESP32 - WS2811/WS2812 LED Driver Board

This board connects the popular Wemos D1 Mini to the very popular WS2811/2812 LED strips.
The board has a 3.3V to 5V line driver for the data and 5V regulator for use with 12V LED strips.

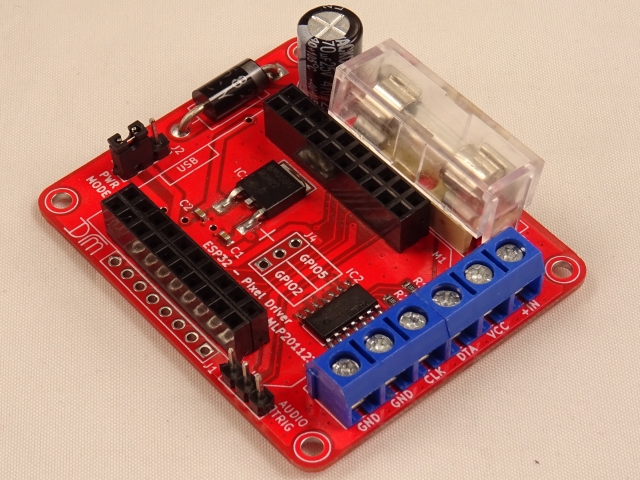

MLP201123 - Wemos ESP32 - WS2811/WS2812 LED Driver Board

This board connects the popular ESP32 Wemos D1 Mini to the very popular WS2811/2812 LED strips.
The board has a 3.3V to 5V line driver for the data and 5V regulator for use with 12V LED strips.

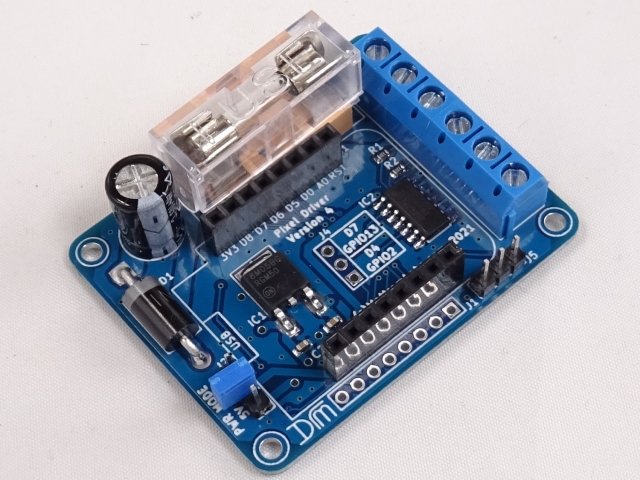

MLP191032 - Wemos ESP8266 - WS2811/WS2812 LED Driver Board

This board connects the popular ESP8266 Wemos D1 Mini to the very popular WS2811/2812 LED strips.
The board has a 3.3V to 5V line driver for the data and 5V regulator for use with 12V LED strips.

MLP191059 - ESP-01 - WS2811/WS2812 LED Driver Board

This board connects the popular ESP-01 to the very popular WS2811/2812 LED strips.
The board has a 3.3V to 5V line driver for the data and 3.3V regulator for the ESP-01

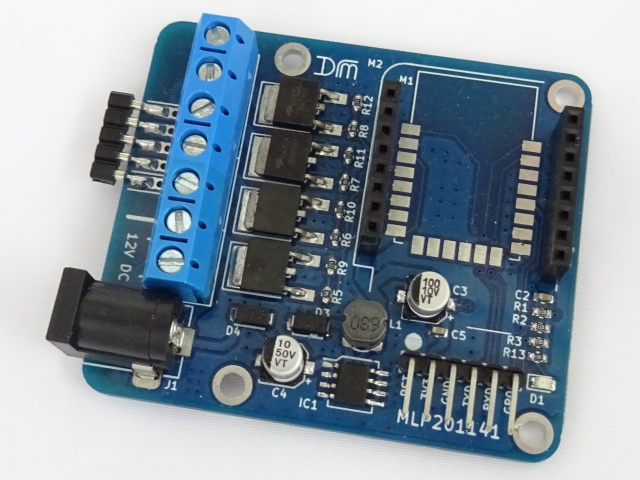

MLP201141 - Wi-Fi PWM LED Driver Board

This board connects the popular Wemos D1 Mini or ESP12 Wi-Fi modules to RGB or RGBW LED strips.
The board has a 3.3V regulator for the ESP modules
